FRAENKISCHE ROHRWERKE codo roscado de aluminio ABG-E 20 (21060020)

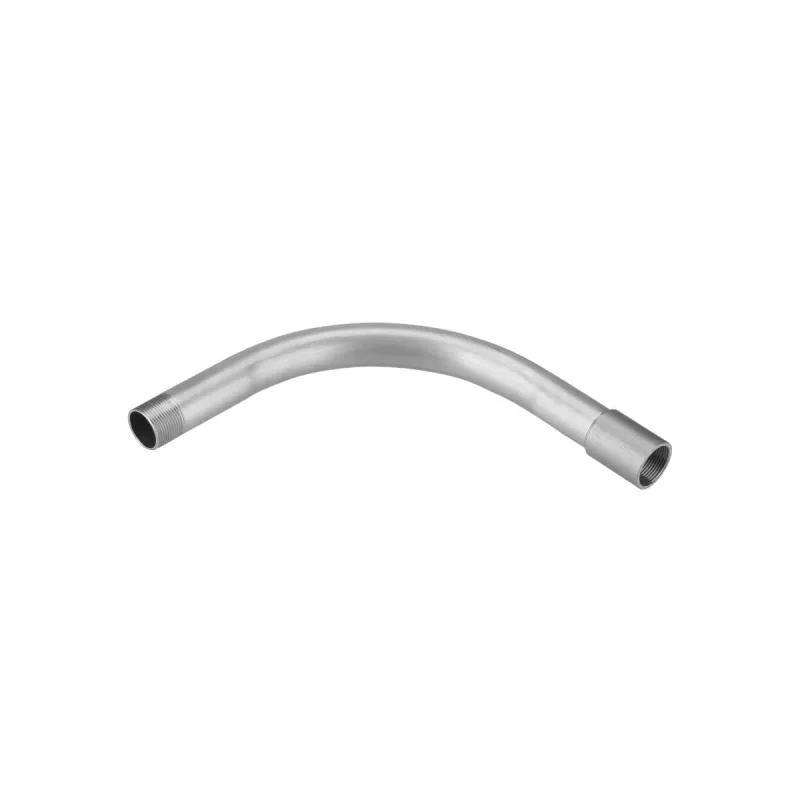

Electricians and panel builders use the FRAENKISCHE ROHRWERKE Aluminium-Gewindebogen ABG-E 20 to make a 90° turn in rigid 20 mm conduit runs. This threaded bend is made of aluminium and has an M20 external thread on one end for direct connection to compatible fittings or enclosures.

Key specifications

• Product type: Threaded bend / conduit elbow
• Material: Aluminium
• Bend angle: 90°
• Nominal conduit size: 20 mm
• Thread type: Metric
• Thread size: M20
• Bend radius (R): 30 mm
• Manufacturer article number: 21060020
• Application area: Electrical installations, cable protection
• Suitable for: Rigid conduits
• Corrosion resistance: High
• Halogen-free: Yes
• Temperature range: -25°C to +60°C
• Surface finish: Untreated / natural aluminium
• Standard compliance: DIN EN 61386-22
• Connection type: External thread

Why choose it

The ABG-E 20 provides a robust 90° bend for aluminium conduit systems, ensuring a secure and corrosion-resistant connection. Its metric M20 thread allows for quick installation without additional adapters.

Ideal use cases

• Routing cables around corners in industrial electrical installations
• Connecting rigid aluminium conduits to junction boxes or equipment
• Outdoor or harsh environments where corrosion resistance is required

Good to know

The bend is supplied untreated, preserving the natural aluminium finish. It is designed for use with rigid conduits and is halogen-free, making it suitable for applications with strict fire safety requirements.
