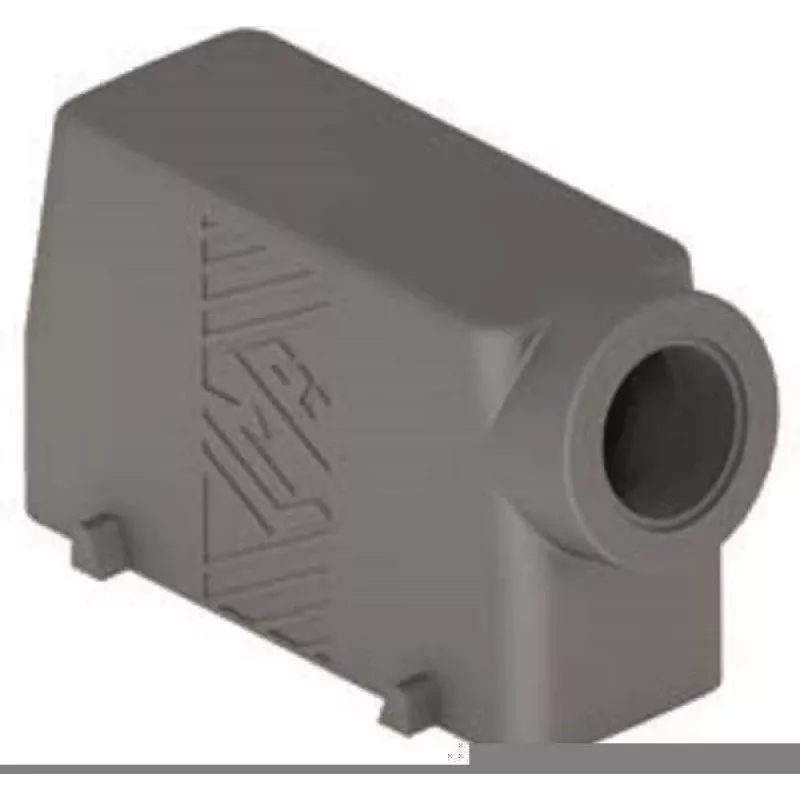

ILME TMAO24.40 Tapa de perfil alto, tamaño 24B, entrada lateral M40, cierre de 4 tornillos, aluminio fundido, RAL 7040

In industrial automation and machinery environments, the ILME TMAO24.40 heavy duty connector hood provides a robust housing for 24B series inserts. This high-construction hood features a side cable entry with M40 thread and a four-bolt locking mechanism, ensuring secure connections in demanding applications.

Key specifications

• Series: T-TYPE
• Size: 24B (Gr. 104.27)
• Construction height: High
• Locking mechanism: 4 bolts
• Cable entries: 1 side entry, M40 thread
• Material: Die-cast aluminum, powder coated
• Colour: RAL 7040 (window grey)
• Protection rating: IP66 / IP67 when mated
• Operating temperature: -40°C to +125°C
• Gasket material: NBR

Why choose it

The die-cast aluminum body with powder coating offers corrosion resistance and durability. The high construction allows for larger cable bending radii, while the side entry facilitates cable routing in tight spaces. The four-bolt locking ensures a secure and vibration-resistant connection.

Ideal use cases

• Industrial machinery and equipment
• Automation systems
• Harsh environment connectivity
• Applications requiring high protection ratings

Good to know

This hood is compatible with 24B series bases and inserts. The NBR gasket provides reliable sealing. The product is part of the T-TYPE series, known for its robust design.
