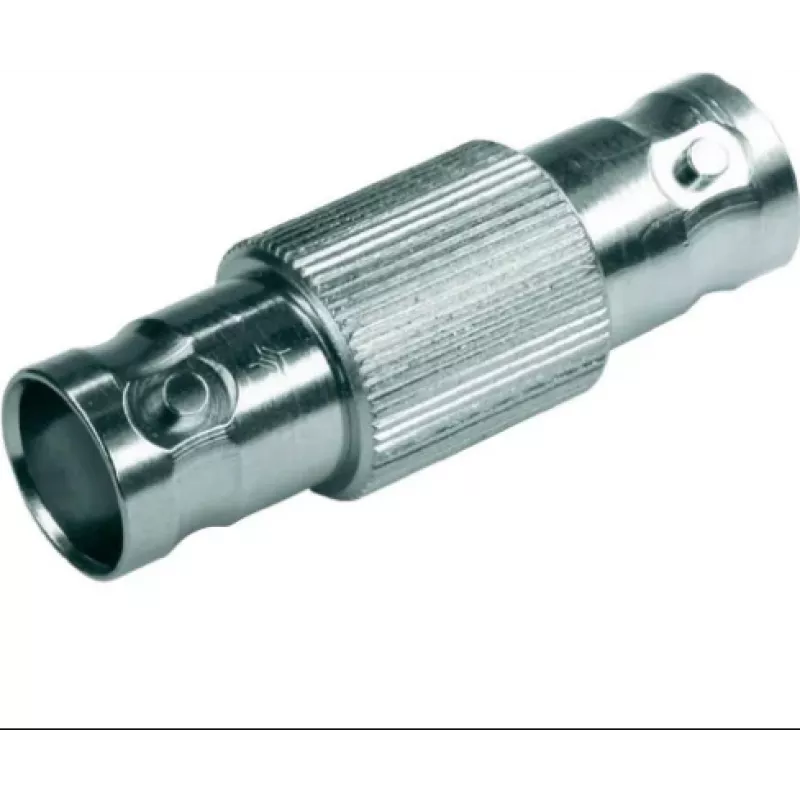

TELEGÄRTNER adaptador coaxial BNC hembra a BNC hembra, 50 ohmios, latón niquelado, tubo recto J01004A0618

RF technicians and test engineers use this inline barrel adapter to join two BNC cables terminated with male plugs. The straight-through design maintains a 50 Ohm impedance path across DC to 4 GHz, making it suitable for bench setups, instrumentation racks, and data communication links where a reliable coaxial junction is required.

Key specifications

• Connector 1: BNC female
• Connector 2: BNC female
• Impedance: 50 Ω
• Body material: Brass with nickel plating
• Contact plating: Gold
• Insulator: PTFE
• Frequency range: DC – 4 GHz
• Voltage rating: 500 V RMS
• Durability: ≥ 500 mating cycles
• Operating temperature: -40 °C to +85 °C
• Mounting type: Free hanging / inline

Why choose it

The nickel-plated brass body resists corrosion while gold-plated contacts ensure low contact resistance and long-term signal integrity. PTFE insulation provides stable dielectric performance across the full temperature range.

Ideal use cases

• Extending BNC cable runs in RF test benches
• Joining coaxial segments in broadcast or CCTV systems
• Creating inline connections in data communication networks

Good to know

This adapter is free hanging and does not require panel mounting. It is compliant with RoHS and REACH directives.
