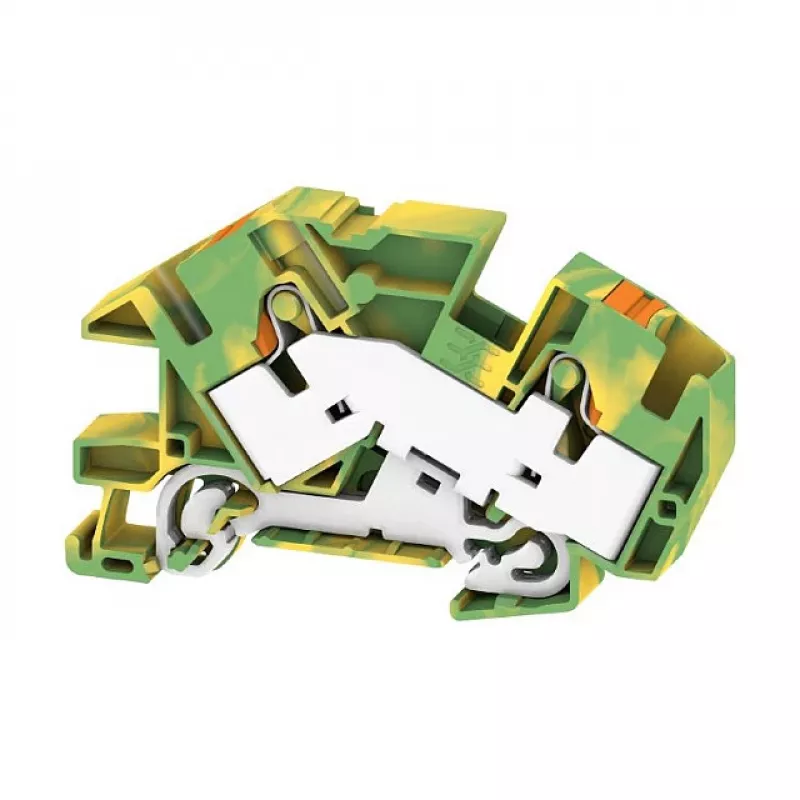

Weidmüller AITB 16 BB 2C PE borne de carril de toma de tierra, verde/amarillo, 16 mm², conexión por tornillo, carril DIN

The Weidmüller AITB 16 BB 2C PE is a high-quality protective earth (PE) terminal block designed for reliable grounding and earthing in industrial electrical installations. With a screw connection technology and a rated cross-section of up to 16 mm², this terminal block ensures secure and durable connections for solid and stranded conductors. Its green/yellow color clearly identifies it as a PE terminal, enhancing safety during installation and maintenance.

Advantages

This terminal block offers a wide operating temperature range from -50 °C to 120 °C, making it suitable for harsh environments. The Wemid insulating material provides excellent mechanical and electrical properties, while the UL 94 V-0 flammability rating ensures high fire safety. The screw connection allows for easy and reliable wiring, and the DIN rail mounting simplifies installation in control cabinets.

Suitable for

• Industrial control panels and distribution boards
• Protective earth (PE) grounding applications
• Power distribution systems requiring high current capacity (76 A)
• Installations requiring compliance with IEC standards

Key specifications

• Terminal Type: Protective Earth (PE) Terminal Block
• Connection Technology: Screw Connection
• Nominal Cross-Section (solid/stranded): 0.5 - 16 mm²
• AWG Range: 20 - 6 AWG
• Number of Connections: 3 (2 conductor inputs + 1 PE rail connection)
• Number of Potentials: 1 (PE)
• Number of Levels: 1
• Mounting Type: DIN Rail TS 35
• Color: Green/Yellow
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 76 A
• Insulating Material: Wemid
• Operating Temperature: -50 °C to 120 °C
• Stripping Length: 16 mm
• Tightening Torque: 2.0 - 2.4 Nm
• Flammability Rating: UL 94 V-0

Recommendations

For optimal performance, use with copper conductors and ensure proper tightening torque. Suitable for use in industrial environments where reliable grounding is critical.
