Weidmüller ZQV 1.5N/10 RD puente transversal, 10 polos, 1,5 mm², rojo, Wemid, 20 unidades

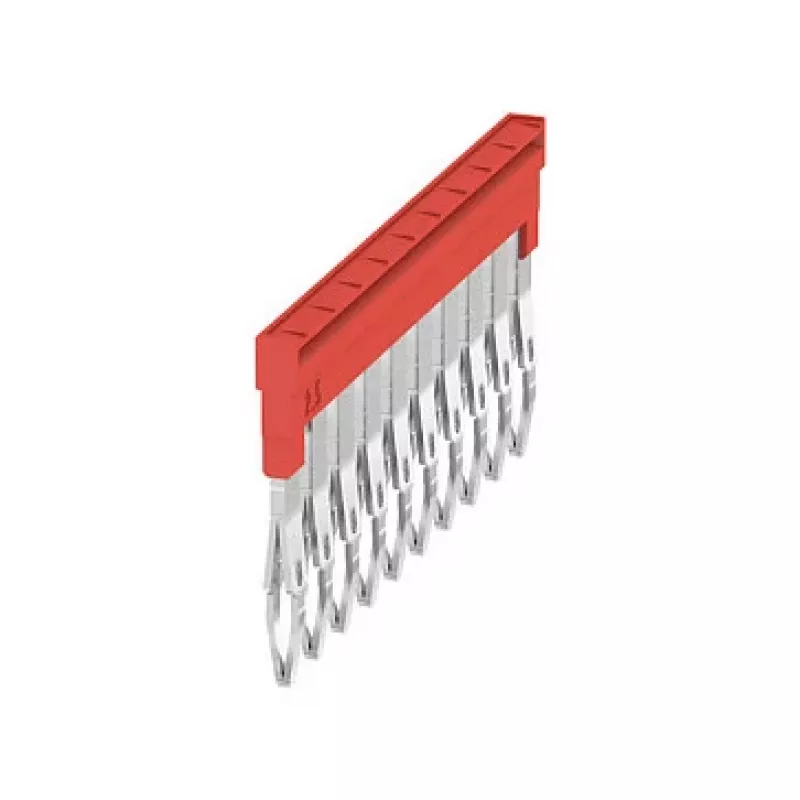

The Weidmüller ZQV 1.5N/10 RD is a high-quality cross-connector designed for use with Weidmüller SAK/W series terminal blocks. It features 10 poles and a rated cross-section of 1.5 mm², making it ideal for bridging multiple terminals in control cabinets and industrial installations. The connector is made of Wemid insulation material, offering excellent thermal and mechanical properties, and is rated UL 94 V-0 for flammability. Its red color allows for easy identification and organization of circuits.

Advantages

This cross-connector simplifies wiring by providing a reliable plug-in connection between adjacent terminals. It saves time and reduces wiring errors, especially in applications requiring multiple common connections. The compact pitch of 3.5 mm allows for space-saving installation, while the wide operating temperature range (-50 to +100 °C) ensures performance in harsh environments.

Suitable for

• Industrial control panels
• Automation systems
• Power distribution
• Signal wiring in machinery

Key specifications

• Product Type: Cross-Connector
• Number of Poles: 10
• Rated Cross-Section: 1.5 mm²
• Color: Red
• Insulation Material: Wemid
• Flammability Rating: UL 94 V-0
• Rated Voltage (IEC): 500 V
• Rated Current (IEC): 17.5 A
• Pitch: 3.5 mm
• Connection Method: Plug-in
• Operating Temperature Range: -50 ... +100 °C
• Suitable For: Weidmüller SAK/W Series Terminal Blocks
• Insulated: Yes
• Packaging Unit: 20 pieces
• RoHS Compliance: Yes
• Approvals: CE, cURus

Recommendations

For optimal performance, use with Weidmüller SAK/W series terminal blocks. Ensure proper insertion to maintain electrical continuity. Store in a dry, cool place.
