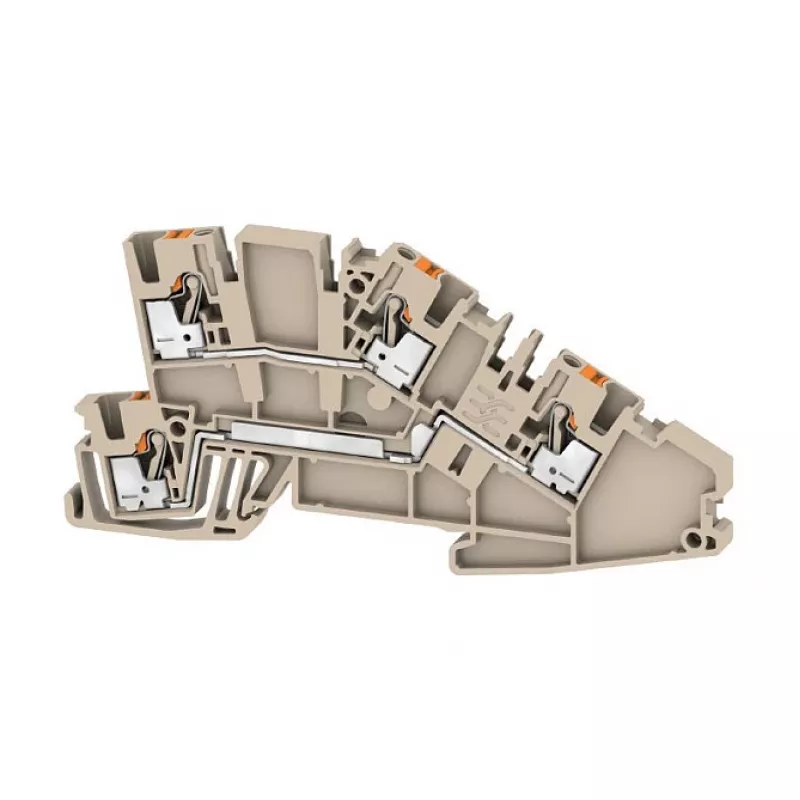

Weidmüller AITB 2.5 L-L borne de carril de instalación, conexión por tornillo, 4 conexiones, 500 V, 24 A, 2,5 mm², beige oscuro

The Weidmüller AITB 2.5 L-L is a high-quality installation terminal block designed for reliable and safe electrical connections. With a rated voltage of 500 V and a rated current of 24 A, it is suitable for a wide range of industrial and building installation applications. The terminal block features a screw connection system, ensuring secure and durable wiring.

Advantages

This terminal block offers easy installation on DIN rail TS 35, saving time and space in control cabinets. The Wemid insulation material provides excellent thermal and mechanical properties, with a flammability rating of V-0 according to UL94. The operating temperature range from -50 °C to 120 °C ensures performance in harsh environments.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution
• Machine wiring

Key specifications

• Terminal Type: Installation Terminal Block
• Connection Type: Screw Connection
• Number of Connections: 4
• Number of Levels: 1
• Rated Voltage (IEC): 500 V
• Rated Current (IEC): 24 A
• Rated Cross-Section (IEC): 2.5 mm²
• Conductor Cross-Section, Rigid: 0.5 - 4 mm²
• Conductor Cross-Section, Flexible: 0.5 - 4 mm²
• Conductor Cross-Section, Flexible with Ferrule: 0.5 - 2.5 mm²
• Mounting Type: DIN Rail TS 35
• Color: Dark Beige
• Insulation Material: Wemid
• Flammability Rating (UL94): V-0
• Operating Temperature: -50 °C to 120 °C
• Stripping Length: 10 mm
• Tightening Torque: 0.4 - 0.8 Nm

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper tightening torque. Always follow local electrical codes and regulations.
