Weidmüller WPD 501 2X25/2X16 1XGN/3XGY/1XBL bloque de distribución serie W 1562140000

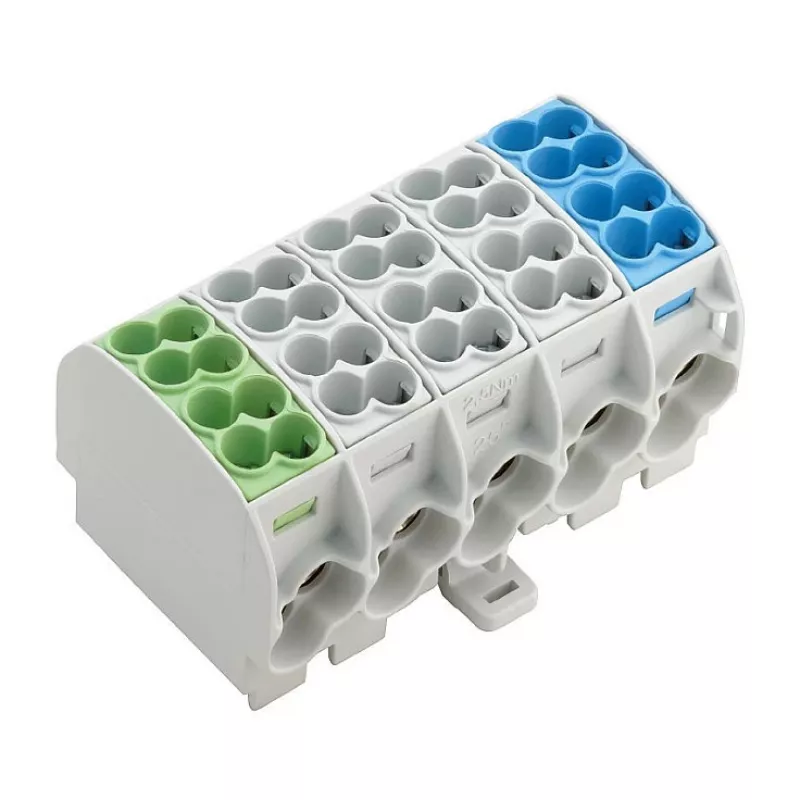

The Weidmüller WPD 501 distribution block from the W-Series is a high-quality terminal block designed for efficient power distribution in industrial applications. With a robust construction and clear colour coding, it ensures reliable connections and easy identification.

Advantages

This distribution block offers a compact design with multiple connection points, allowing for flexible wiring configurations. The colour-coded terminals (1x green-yellow, 3x grey, 1x blue) simplify installation and reduce wiring errors. It supports conductor sizes up to 25 mm² for main circuits and 16 mm² for branch circuits, making it suitable for a wide range of applications.

Suitable for

• Industrial control panels
• Power distribution systems
• Machine building
• Electrical installations requiring reliable and organized wiring

Key specifications

• Brand: Weidmüller
• Model: WPD 501 2X25/2X16 1XGN/3XGY/1XBL
• MPN: 1562140000
• EAN: 4050118385229
• Category: Distribution Block
• Series: W-Series
• Number of connections: 6 (1x green-yellow, 3x grey, 1x blue)
• Conductor cross-section: 2x 25 mm² / 2x 16 mm²
• Colour: Grey (housing), with colour-coded terminals

Recommendations

For optimal performance, ensure proper tightening torque as per manufacturer specifications. Use appropriate cable lugs for stranded conductors. This distribution block is designed for use in dry environments; for outdoor or harsh conditions, consider additional protection.
