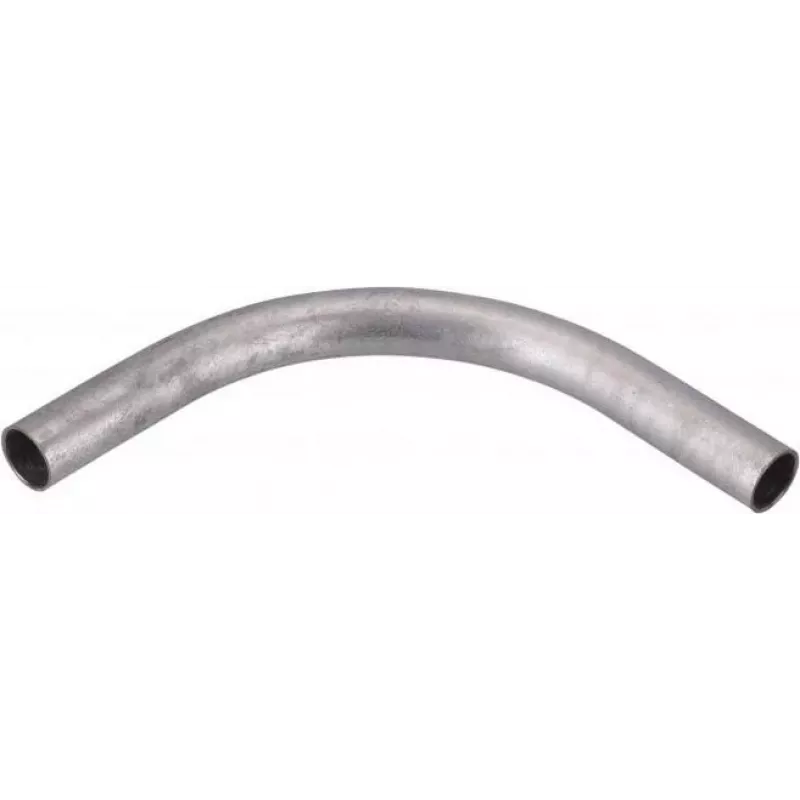

Codo de enchufe de tubo de acero 90° M40 galvanizado en caliente para StaroSteck-ES 20560040

Steel conduit plug bend with 90° angle for rigid steel conduits, providing a robust and fire-resistant connection in electrical installations. Its hot-dip galvanized finish ensures excellent corrosion protection, making it suitable for demanding environments.

Advantages

Manufactured from steel with hot-dip galvanization, this bend offers very high corrosion resistance and impact strength. It is non-flammable and halogen-free, contributing to safety in building installations. The plug-in connection allows quick and secure assembly without additional tools.

Suitable for

• StaroSteck-ES conduit systems
• Rigid steel conduits with M40 nominal diameter
• Industrial and commercial electrical installations
• Areas requiring high mechanical protection

Key specifications

• Material: Steel
• Surface treatment: Hot-dip galvanized
• Nominal diameter: M40
• Bend angle: 90°
• Bend radius: 160 mm
• Connection type: Plug-in
• System compatibility: StaroSteck-ES
• Impact resistance: Very high (Class 5, >6 Joules)
• Compression resistance: Very high (Class 5, >4000 N)
• Temperature range: -45°C to +400°C
• UV resistant: Yes
• Halogen-free: Yes
• Colour: Metallic grey

Recommendations

For use with FRAENKISCHE StaroSteck-ES rigid steel conduits. Ensure proper alignment during installation to maintain system integrity.
