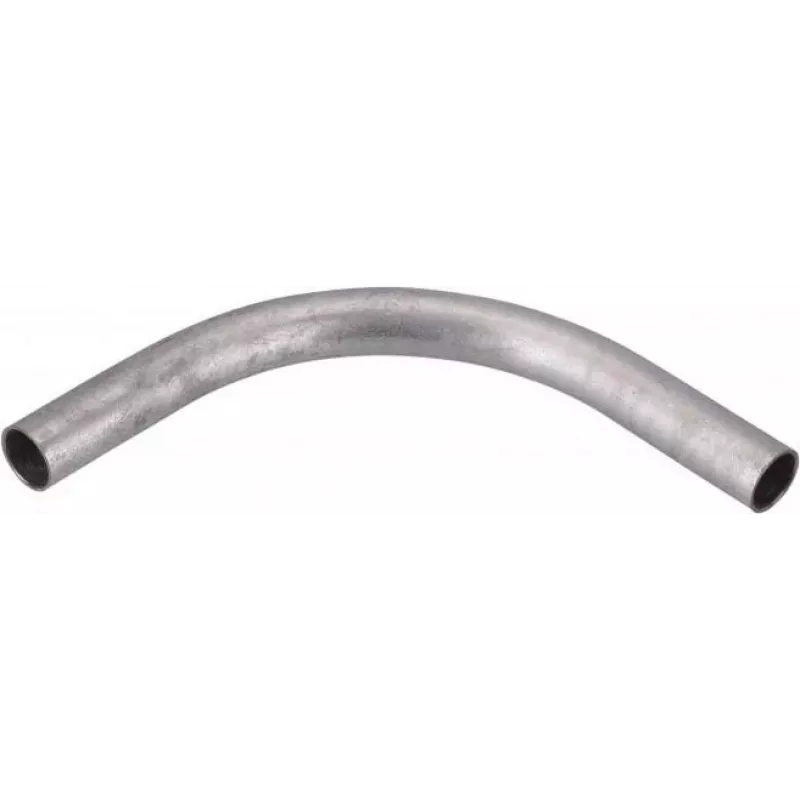

Codo de tubo de acero para StaroSteck-ES, 50mm, galvanizado en caliente, 90° 20560050

Electricians installing surface-mounted or embedded conduit systems in industrial and outdoor environments need bends that withstand mechanical stress and corrosion. This steel conduit bend for the StaroSteck-ES system provides a 90° change of direction with a nominal diameter of 50 mm. The hot-dip galvanized finish ensures long-term protection even in harsh conditions.

Key specifications

• Product type: Steel conduit bend
• System compatibility: OBO Bettermann StaroSteck-ES
• Bend angle: 90 degrees
• Nominal diameter: 50 mm (M50)
• Material: Steel
• Surface treatment: Hot-dip galvanized
• Connection type: Push-fit
• Bend radius: 160 mm
• Colour: Metallic grey

Why choose it

The hot-dip galvanization provides very high corrosion protection, making this bend suitable for both indoor and outdoor use. Its push-fit connection allows quick and secure installation without additional tools. The steel construction offers very high impact and compression resistance, ensuring durability in demanding applications.

Ideal use cases

• Electrical installations in industrial facilities
• Cable protection in outdoor environments
• Concrete-embedded conduit systems
• Surface-mounted wiring in commercial buildings

Good to know

This bend is part of a system that complies with EN 61386 and can be used in temperatures from -45 °C to +400 °C. It is halogen-free and UV-resistant, making it a reliable choice for long-term installations.
