FRAENKISCHE ROHRWERKE acoplamiento de enchufe de aluminio AMS-E 63 (20950063)

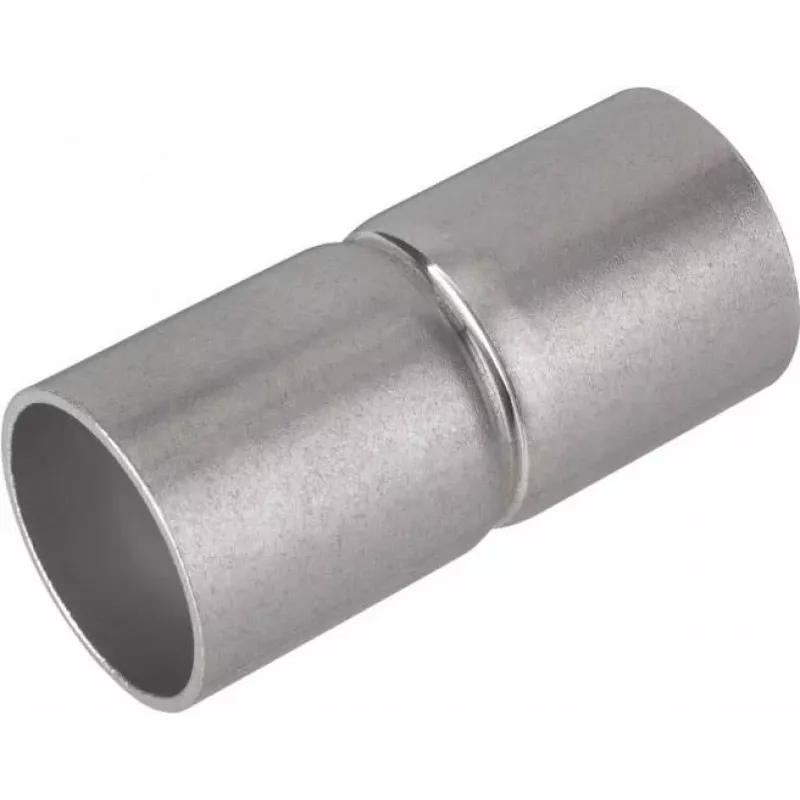

Aluminium push-fit coupling for rigid aluminium conduits with 63 mm outer diameter. Its push-fit connection allows quick, tool-free assembly and provides a secure, durable joint.

Advantages

Made of aluminium, the coupling is lightweight yet robust, with corrosion and UV resistance for long service life. The push-fit design speeds up installation and reduces downtime. It is halogen-free, making it suitable for environments with strict fire safety requirements.

Suitable for

• Rigid aluminium conduits with 63 mm outer diameter
• Industrial and commercial electrical installations
• Applications requiring a reliable, maintenance-free connection

Key specifications

• Product type: Push-fit coupling
• Material: Aluminium
• Nominal diameter: 63
• Compatible conduit outer diameter: 63 mm
• Series: AMS-E
• Temperature range: -45°C to +250°C
• Halogen-free: Yes
• Corrosion resistance: Yes
• UV resistance: Yes

Recommendations

For best results, ensure the conduit end is cut square and deburred before insertion. The coupling is designed for rigid aluminium conduits; do not use with flexible or plastic conduits.
