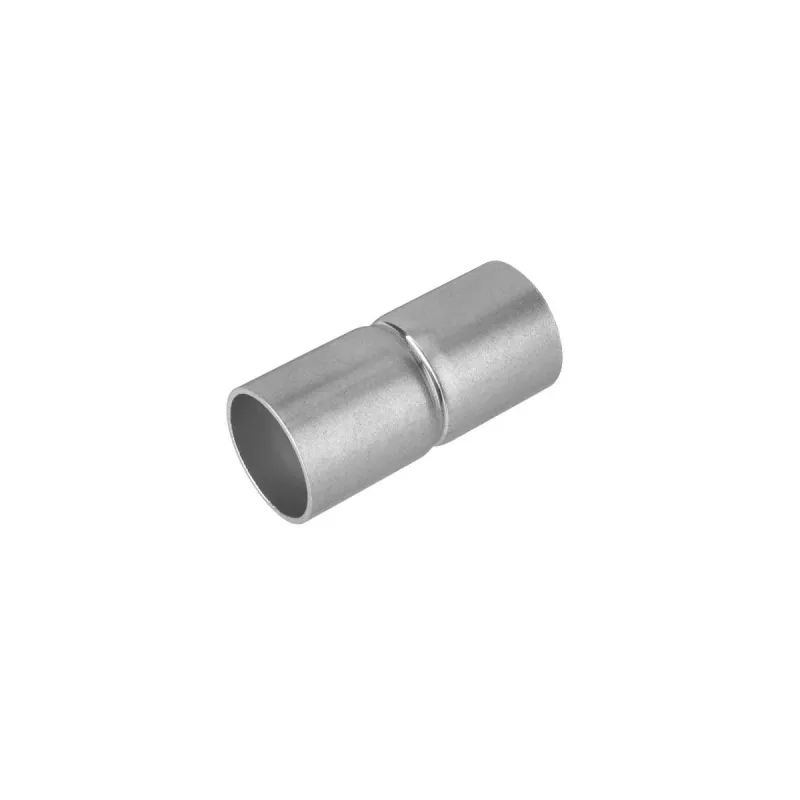

FRAENKISCHE AMS-E 32 Acoplamiento de aluminio M32

Connecting rigid aluminium conduits in electrical installations often requires time-consuming threading or special tools, which slows down assembly and increases labour costs. The FRAENKISCHE AMS-E 32 Aluminium Push-Fit Coupling solves this by providing a tool-free, secure connection that snaps together in seconds. Designed for professional electricians and panel builders, this coupling ensures a reliable, corrosion-resistant joint for aluminium conduit systems with a nominal diameter of 32 mm.

Who is it for

This coupling is ideal for electrical contractors, industrial maintenance teams, and OEMs who work with rigid aluminium conduits in demanding environments. It suits applications where fast installation and long-term durability are critical, such as machine building, plant engineering, and protected outdoor installations.

Main features

• Tool-free push-fit connection for rapid assembly without special tools
• Made from high-quality aluminium for excellent corrosion resistance and mechanical strength
• Compatible with rigid aluminium conduits of 32 mm nominal diameter
• Halogen-free and non-flame propagating for enhanced safety
• Wide operating temperature range from -45°C to +250°C
• Protection class IP40, suitable for indoor and protected outdoor use
• Complies with DIN EN 61386-21 for conduit systems

Specifications

• Product type: Aluminium push-fit coupling
• Material: Aluminium
• Nominal diameter: 32 mm
• Series: AMS-E
• Connection type: Push-fit
• Halogen-free: Yes
• Flame propagating: No
• Corrosion resistance: Yes

Tips

For best results, ensure conduit ends are cut square and deburred before insertion. The push-fit mechanism provides a secure connection but is not intended for frequent disconnection; verify alignment to maintain IP40 protection.
